For Stage, Living Room, and Studio.
Jellymix is a compact stereo performance mixer designed for electronic musicians. Connect your favourite synths, drum machines, modules, and grooveboxes to the five stereo input channels. Shape your sounds live with channel EQ, the dual stereo resonant filters, and stereo effects on the two stereo AUX busses. The tactile and inviting interface of Jellymix is perfect for knob twiddling, switch flicking, and/or button pushing your way to new sonic joys and dubby dreams; live on stage, your living room, or in the studio.
Overview
- 5 stereo channel strips with balanced ¼” line inputs and clickless mutes (w/ mono L > R normalling)
- 2 stereo balanced AUX Sends per channel (PRE/POST w/ mono sum normalling)
- 2 stereo balanced EXT inputs (summed to MAIN bus, can be used as AUX Returns)
- Hi-Z Instrument input on channel one (for connecting guitars, etc.)
- Stereo SVF master filters with separate LO CUT (HPF) and HI CUT (LPF) controls, dedicated resonance knob (Q), and clickless bypass switches
- Main output level control with led meter
- Headphone output with selectable source (MAIN or MUTED bus)
- Pleasing overdrive via soft clipping on all critical stages of the audio paths: channel gains/sums, EQ, aux busses, filter bus, and main output bus
- All Analog design; high-quality/durable construction—
- Neutrik jacks
- Alpha pots
- Salecom sealed switches
- Sound Semiconductor VCAs
- Low-noise/Low-distortion op-amps
- Dimensions: 277mm x 122mm x 66mm / 10.9″ x 4.8″ x 2.6″
- DC Power Supply included (MEAN WELL 30W 12VDC/2.5A)

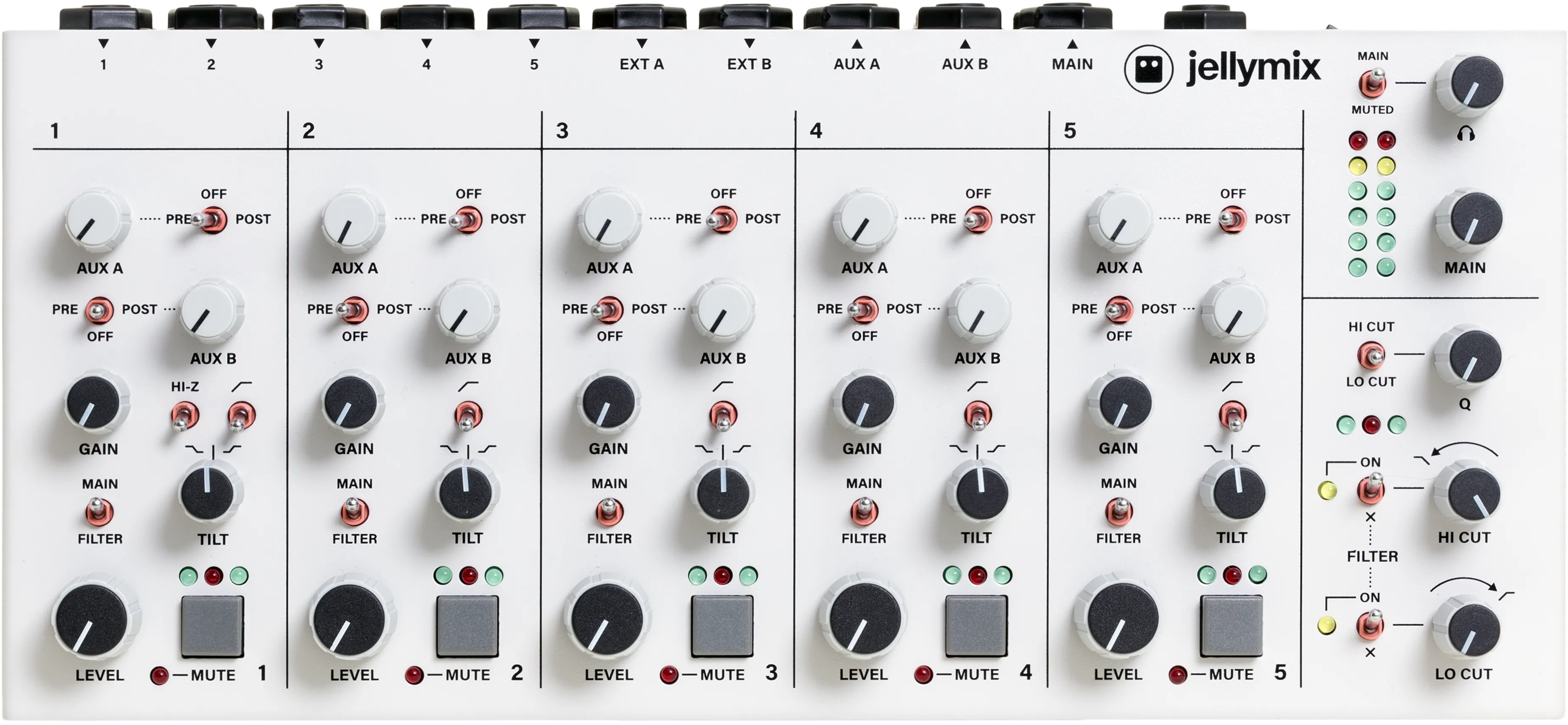

Five Stereo Channel Strips
- Input gain with up to +26dB
- Eurorack levels welcome
- Hi-Z Instrument mode (Ch 1 Only)
- Switchable 150Hz LO CUT (with FILM caps)
- Tilt EQ with 810Hz center, 10dB Boost/Cut
- Dual stereo aux sends with selectable PRE, OFF, or POST routing
- MAIN/FILTER routing switch
- Large rotary level control knobs
- L and R signal level indicator LEDs (green) and overload LED (red)
- L > R Normal for mono devices
- MUTE switch with clickless muting and LED indicator
- MUTED channels routed to the MUTED bus (CUE for headphone monitoring)
- Soft clipping on channel gain stage, tilt EQ, aux busses, and summing bus headphone monitoring)
Main / Filter Bus
- Dual stereo SVF MAIN filters with clickless bypasses
- Low Cut (HPF) and High Cut (LPF) controls
- Assignable filter resonance control (Low/High/Both)
- MAIN level control with soft clipping and LED meter
- Headphone output with selectable source (MAIN or MUTED bus)
- Soft clipping on the FILTER
Eurorack Levels Accepted
Stop mixing on tiny controls in the rack, regain the space and add dual stereo sends to your modular patching. Intellijel 1/4″ to 3.5mm patch cables available.
3.5mm to 1/4" Intellijel Patch Cables
4 Pack of one Length + Colour
Easy Connectivity
Does your mixer accept modular level? Patch your Mixer, external synths, and drum machines directly into modular.
Bundled in packs of four (4) and includes a cable wrap.
